| ได้รับการรับรอง: | CE, RoHS, ISO9001 |
|---|---|
| จำนวนสั่งซื้อขั้นต่ำ: | 1 |
| ราคา: | 88 |
| รุ่นหมายเลข: | BH93420-I | สัญญาณเอาต์พุต: | 4-20mA หรือ RS485 |
|---|---|---|---|
| การจัดอันดับ IP: | IP68 | น้ำหนักสุทธิ: | 0.3kg |
| วัสดุไดอะแฟรม: | สแตนเลส 316L | ความมั่นคงในระยะยาว: | +-0.2% F.S/ปี |
| อุณหภูมิปฏิบัติการ: | -20 ~ 80oC | ช่วงการวัด: | 0 ~ 10m … 400m |
| ความแม่นยำ: | ± 0.25% (typ.) ± 0.5% (สูงสุด) | การทำซ้ำได้: | ± 0.03% (typ.) ± 0.05% fs (สูงสุด) |
| การตีโพยตีพาย: | ± 0.03% (typ.) ± 0.05% fs (สูงสุด) | จุดดริฟท์เป็นศูนย์: | ± 1.5%fs (typ.) ± 2%fs (สูงสุด) |
| ดริฟท์เต็มสเกล: | ± 1.5%f.sr (typ.) ± 2%fs (สูงสุด) | ค่าตอบแทน Temp.: | 0-50ºC (0-1M. 0-2M); 0-70ºC |
| คะแนนป้องกันการระเบิด: | เอ็กเซียIICT6 | ||
| เน้น: | 4-20mA water level transmitter,IP68 stainless steel water sensor,water level transmitter with warranty |
||

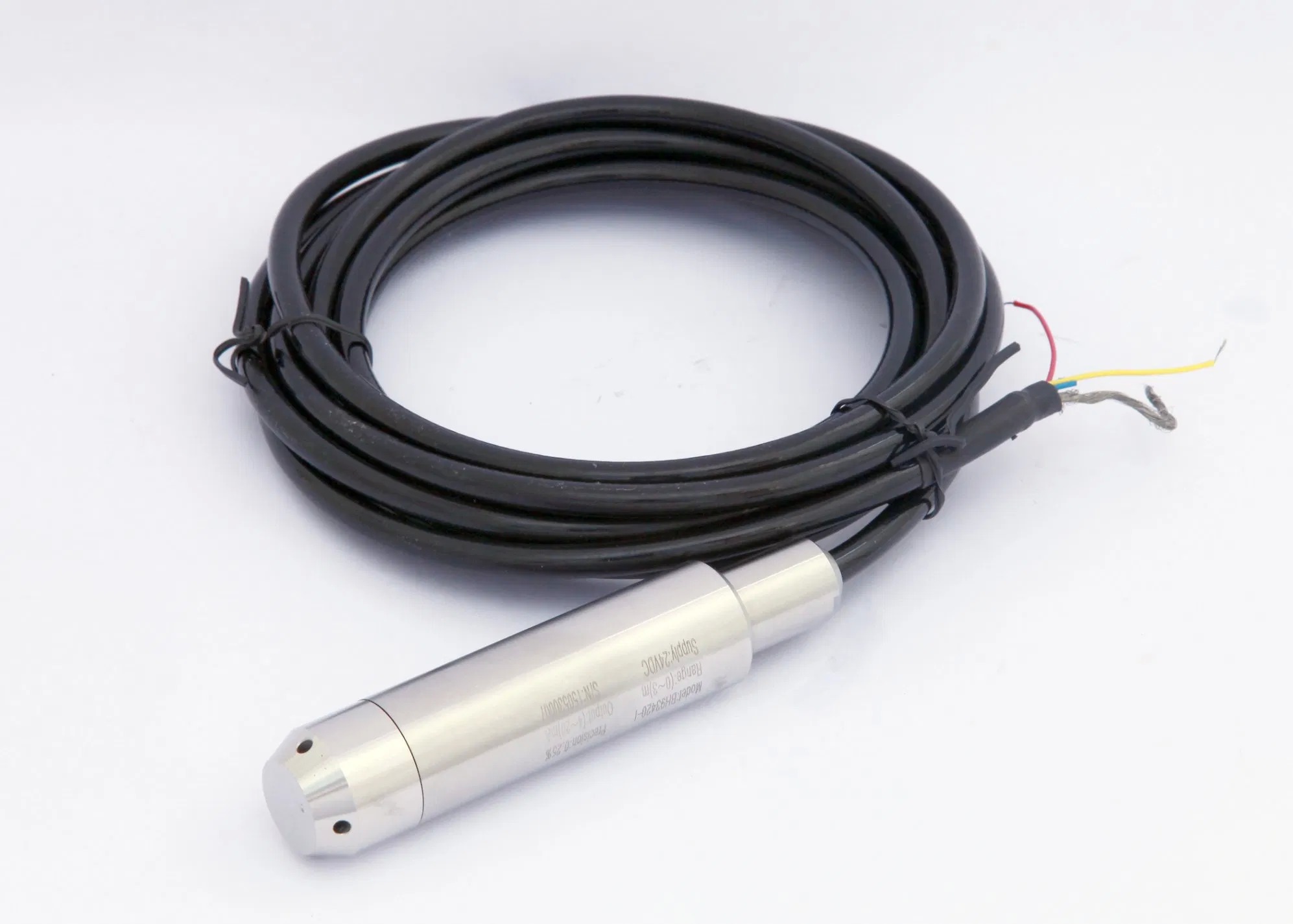

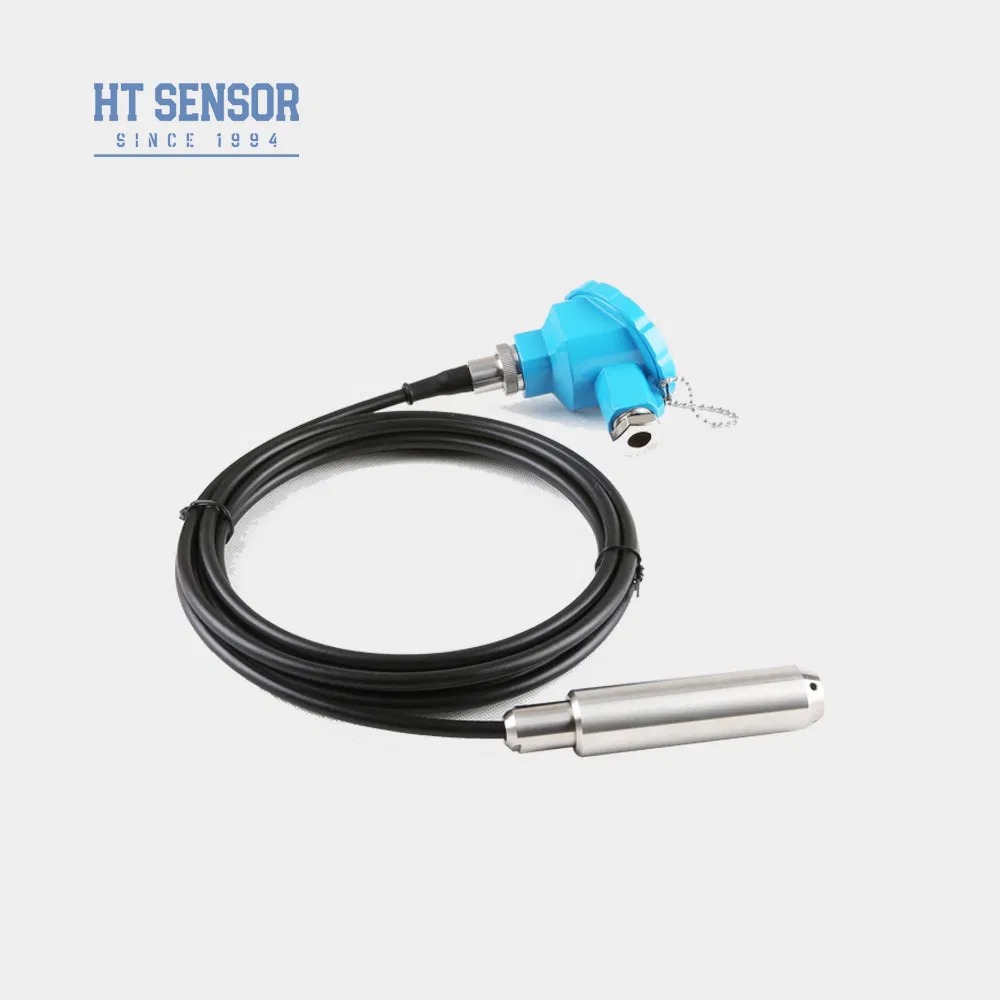

The BH93420-I is a water level transmitter that uses HT series diffused silicon isolation oil-filled core as its signal measuring element. Designed with a full stainless steel housing and compact one-piece structure, the sensing part immersed in water is completely sealed with stainless steel for excellent waterproof performance. Rigorous high and low-temperature compensation and aging tests ensure high reliability and stability.
| Measurement Range | 0~10m...400m |
| Overload | ≤ 2 X of rated range |
| Accuracy @ 25ºC | ±0.25% (Typ.) ±0.5% (Max.) |
| Repeatability | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Hysteresis | ±0.03% (Typ.) ±0.05%FS (Max.) |
| Long-Term Stability | ±0.2%F.S/year (Max.) |
| Zero Point Temperature Drift | ±1.5%F.S(Typ.) ±2%F.S (Max.) |
| Full Scale Temperature Drift | ±1.5%F.Sr(Typ.) ±2%F.S (Max.) |
| Compensation Temperature | 0-50ºC (0-1m. 0-2m); 0-70ºC |
| Operating Temperature | -20~80ºC |
| Storage Temperature | -30~100ºC |
| Vibration | 10g,55Hz ~ 2kHz |
| Housing Material | 1Cr18Ni9Ti |
| Diaphragm Material | 316L Stainless Steel |
| Insulation Resistance | >=100MΩ@100VDC |
| Explosion-proof Rating | ExiaIICT6 |
| Protection Rating | IP67, IP68 |
| O-Ring Seal | Fluoro rubber |
| Weight | ~0.3Kg (without cable) |
| Cable Material | Polyethylene, Polyurethane |
| Output Signal | Supply Voltage | Output Type |
|---|---|---|
| 4~20mA | 12~30VDC | 2/3/4 wire |
| 0~10/20mA | 3 wire | |
| 0/1~5V | 5VDC | |
| 0/1~10V | ||
| 0.5~4.5V | ||
| RS485 Communication Protocol | 3.6~30V / Battery | 4 wire |
| Code | Option |
|---|---|
| BH93420 | Base Model |
| I | Pressure Transmitter |
| Measurement Range | 0~10m...400m |
| D1 | 24VDC Power Supply |
| D2 | 5VDC Power Supply |
| D3 | Other Power Supply |
| S1 | 4~20mADC Output |
| S2 | 1~5VDC Output |
| S3 | 0~5VDC Output |
| S4 | 0~10mADC Output |
| S5 | 0~20mADC Output |
| S6 | 0~10VDC Output |
| S7 | 0.5~4.5VDC Output |
| S8 | RS485 Output |
| G | Gauge Pressure |
| A | Absolute Pressure |
| S | Sealed Reference Pressure |
| 01 | 304 Stainless Steel |
| 02 | 316L Stainless Steel |
| C1 | PE Cable |
| C2 | PU Cable |
